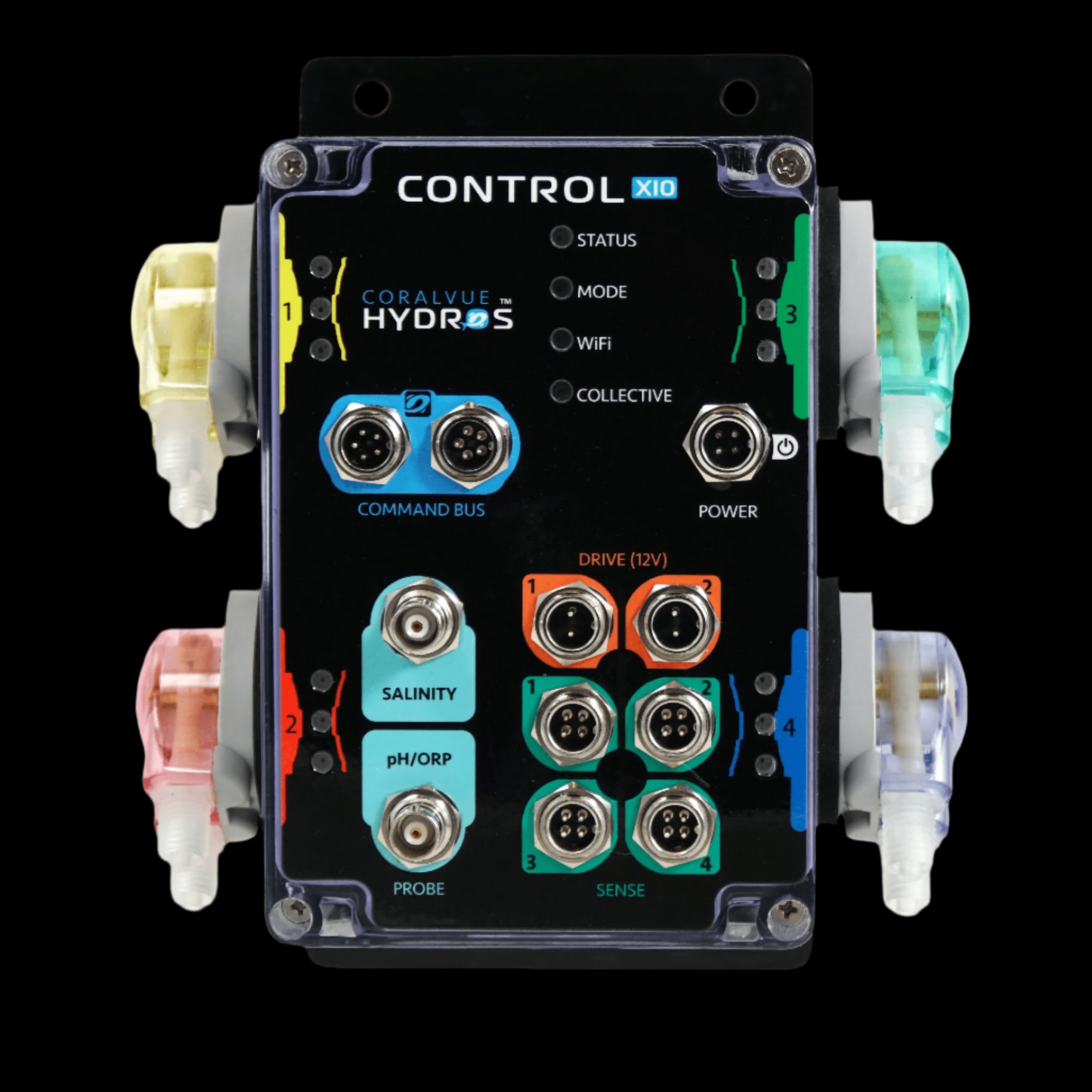

HYDROS Control X10
The ultimate HYDROS system controller with built in dosing pumps.
The Control X10 is a highly versatile and efficient device that combines the functionalities of a HYDROS Controller and a multi-head dosing pump. It is equipped with four individual dosing pumps that allow for precise dosage of necessary elements. Along with its dosing capabilities, it can also monitor and regulate temperature, and track pH or ORP levels. With additional accessories, this controller can also monitor salinity, water levels, identify leaks, and more.
One Salinity Probe
The Salinity Probe is a special probe port for use with conductivity probes to monitor the salinity of an aquarium's water.
One pH/ORP Port
Probes are only as good as their signal. The Control X10 ensures your readings will be accurate and reliable.
Four Sense Ports
HYDROS devices are utilizing an entirely new way to measure parameters. A Sense Port is a universal input port that can gather data from numerous different types of sensors.
Two Drive Ports
Drive ports provide power (switched 12Vdc) and communicate between devices! They also monitor current and can be notified if a failure occurs.
Eight WiFi Devices
The HYDROS App allows you to create rules and schedules to control up to eight wifi devices, such as the HYDROS fish feeder, power strips, and smart outlet.
Two Command Bus
The Command Bus not only powers the Control, but it also communicates with other HYDROS devices for the ultimate failsafe.
Highlights:
Just one Control X10 can monitor temperature, pH, ORP, salinity, temperature, and water levels, to name a few. And, it can power other Controls.
The device features one (1) Salinity Probe Port, four (4) Sense Ports, two (2) Drive Ports, a pH/ORP Port, Command Bus, and four (4) stepper dosing pumps.
It can be used as a standalone controller for saltwater aquariums, freshwater tanks, and pond applications, or it can be added to other HYDROS Controls to build a more extensive system.
All HYDROS products are engineered, assembled, and supported in the USA.

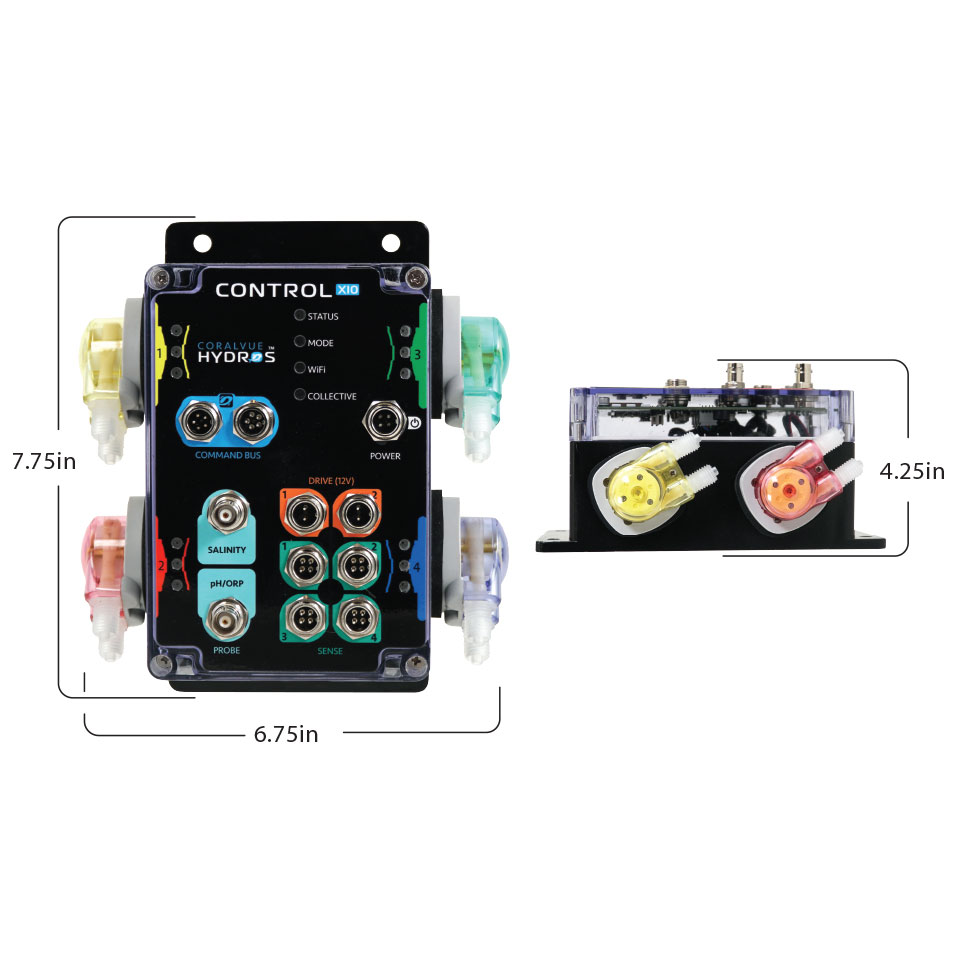

Dimensions (LxWxH) 7.75″ x 6.75″ x 4.25″
Control X10 retails at $799.99

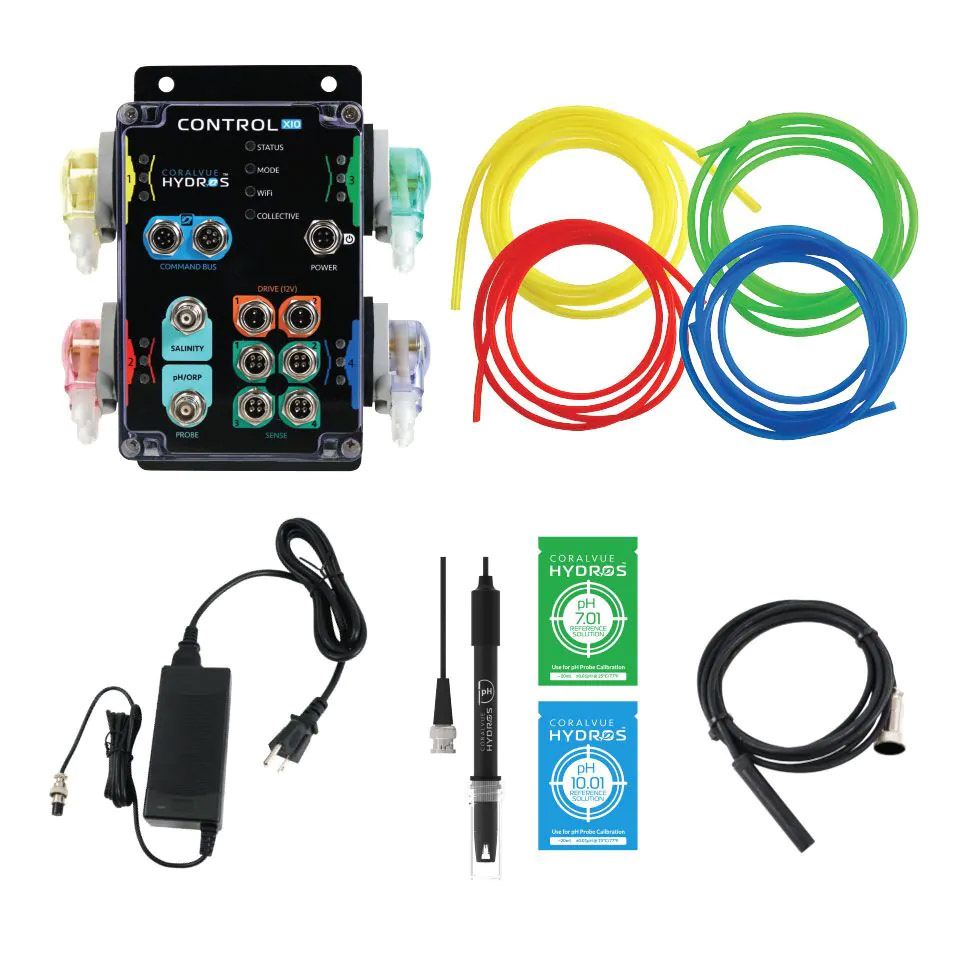

Included in the Box
X10 Controller
Power supply
pH probe
Calibration solutions
Temperature sensor
Four (4) 10ft dosing tubing
Calibration beaker
Ready to Take Full Control of Your Tank?

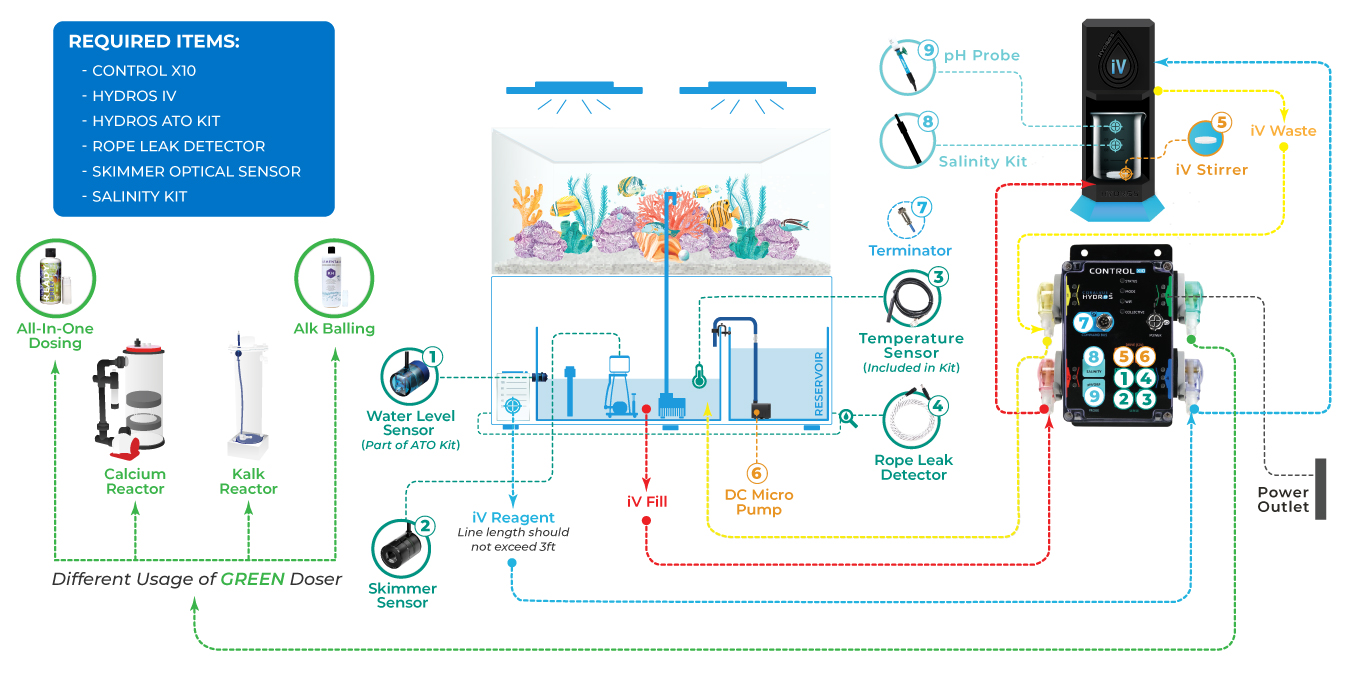

Example Setup A:
Alkalinity and Salinity Monitoring

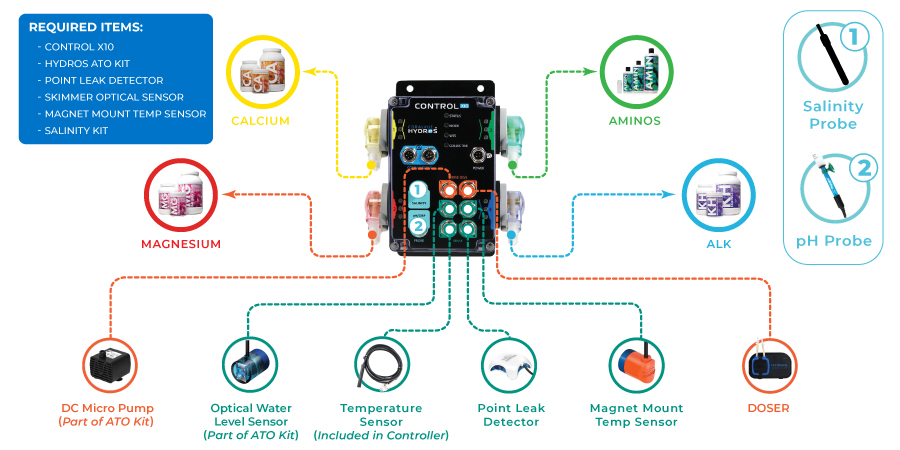

Example Setup B:
Balling Method Dosing with Salinity Measurement
Control X10 Features:

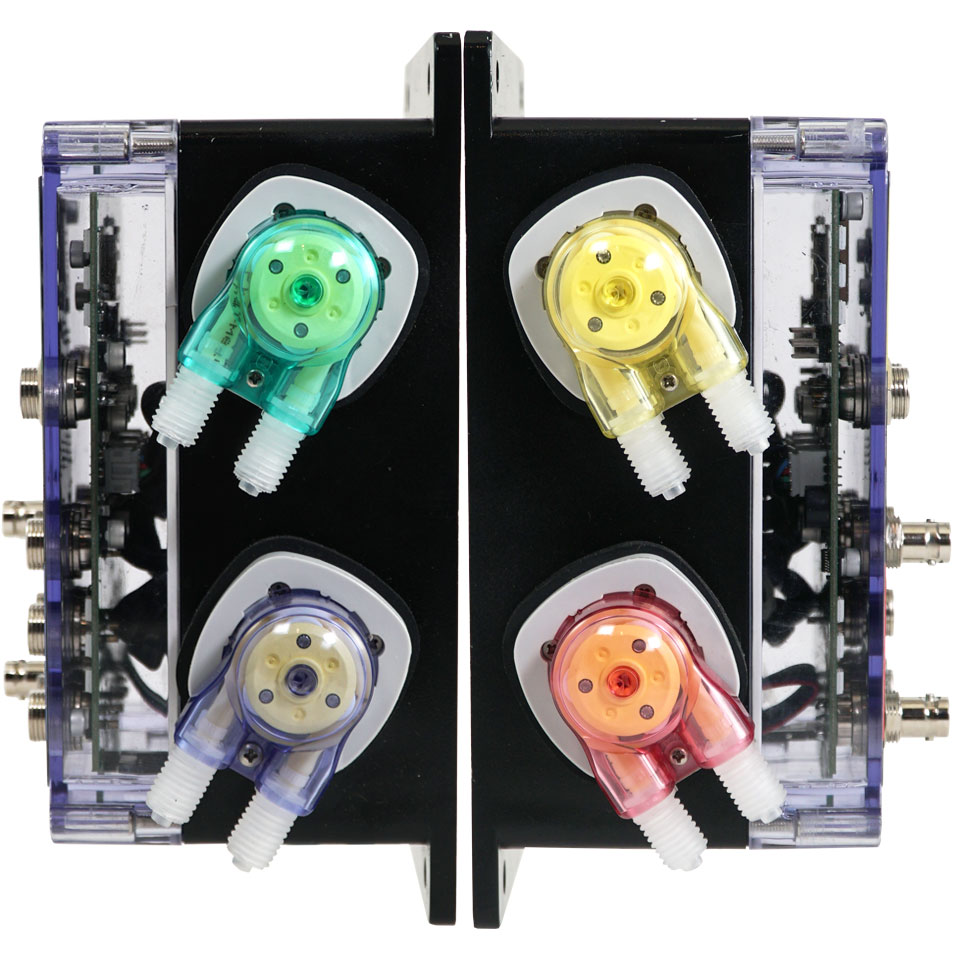

High Precision
Stepper Dosing Pumps
Four independent fluid metering stepper pumps provide remarkable precision dosing your favorite two-part, trace elements, water changes, liquid food additives, and alkalinity testing to name a few common uses.
Rated pump speed: -100mL/min to 100mL/min
Stepper Motor Features:
Quiet Operation
Can run in reverse
Exact Metering of Liquids
Color-Coded Dosing Heads and Tubing
Easy to Service
Quick & Easy Setup
Absolutely No Coding!
There is no complicated programming language to learn. If you can operate a smartphone, you can be the operator of an intelligent aquarium—tap, drag, press, or flick to adjust settings using intuitive icons and simple menus. Schedule each component in your aquarium life support system to run at a specific time, frequency, or intensity. You can also use real-time data and easily configure more complex actions.
Discover More »
System Smart Net
All HYDROS devices speak with each other to keep your aquarium thriving!
The HYDROS system forms a web to monitor and control equipment like water level sensors, automatic top-off pumps, and other devices. Unlike other automation systems, the HYDROS Control can eliminate communication problems and maintain control of the aquarium even if a device is removed or shuts down.
See More »
Alerts, Alarms, & Notifications
Accidents happen, but with HYDROS, it doesn’t have to be a disaster.
Leaving a cord unplugged or forgetting to turn a device back on can have devastating consequences on your aquarium. With the HYDROS App’s notification alerts, you can protect your investment and turn a possible disaster into nothing more than a simple inconvenience.
